MK2 new-MK3






The new LSResearch direct drive mobile

AERIAL PERFORMER WINCH MK2 & MK3

Basic description


This new winch was designed to fulfil all state of the art artistic flying performances, highspeed movements and tracking application requirements due to world´s highest safety standards.

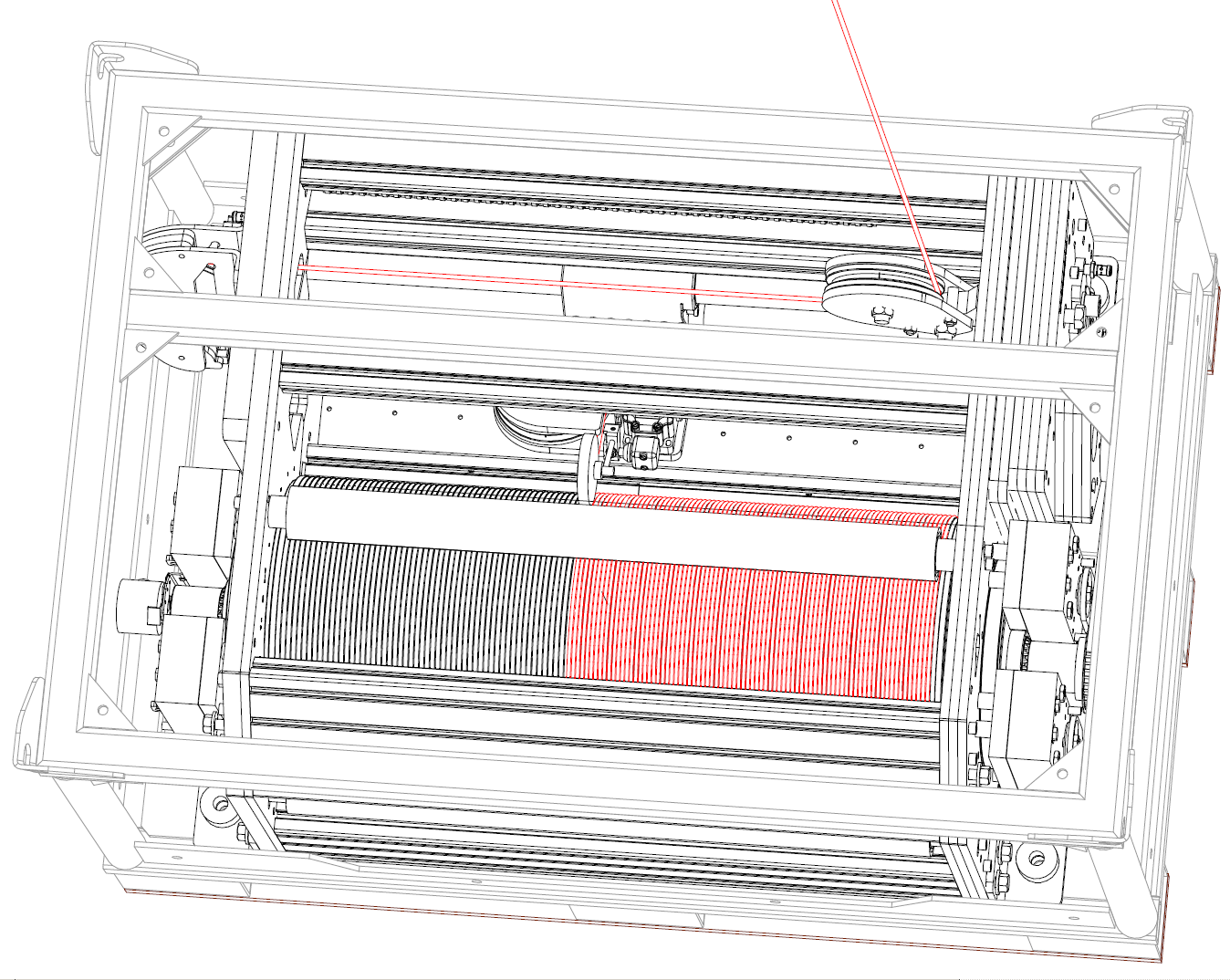

It is completely mobile; mounted in a rugged steel frame. During transport all sides are covered by plywood wich is fixed to the steel frame. Dimensions are adapted to European pallet size of 120cm x 80cm and frames are stackable. So even transportation is really safe and easy.
The winch is usually located on ground level; ropes exit vertically and are deflected by pulleys to their designated lifting points.This way of disposition allows a wide spectrum of positioning and adjustment, comfortable setup at any time of production progress and permanent access to all relevant components of the winch. Even opening the breaks manually is no problem which can become necessary e.g. on power loss situations. The winch is driven by two strong torque motors without transmission. Four safety breaks provide accurate and highly reliable breaking performance, so break overpower is not too strong due to redundancy. A linear drive mechanically coupled to the drum provides real zero fleet rope departure. Three sliders direct the rope onto and from the drum, metering the minimum rope tension directly when the rope leaves the drum. Load metering takes place directly behind, not with a bolt- or motor -torque -meter but a more precise s-cell. Outgoing angle can be adjusted, that gives the positioning of the winches on the ground some additional range.

Variety of models
At the moment we provide three different versions of our new high speed winch.


maximum static load
1 kN
1,5 kN
2 kN
maximum acceleration
6 m/sec²*
5 m/sec²*
4 m/sec²*
steel rope
4 mm
5 mm
6 mm

capacity

 single rope
double rope

app. 140 m
app. 2 x 65 m
app. 105 m
app. 85 m
speed
8 m/sec
6 m/sec
5 m/sec
recommended power
15 kW
18 kW
20 kW
amplifier recommended current amperage
40A
60A
80A
dimension MK2s
1200mm x 800mm x 690mm
dimensions MK3
1200mm x 800mm x 800mm
weight MK2
app. 600kg
weight MK3
app.
*maximum acceleration depends on rope strength.
- according to German BGV-C1
- for mobile use in European pallet size
- gearless redundant drive
- static ropes exit point (zero fleet)
- quad breaks with break lift monitoring
- two independent absolute positioning sensors
- precise load control directly on the rope
- working and emergency limit switches
- crosswire control
- rope tension monitoring close to drum
- for 1D-, 2D-, 3D- flying and track drive applications
- power devices and sensors on two Harting style connectors
